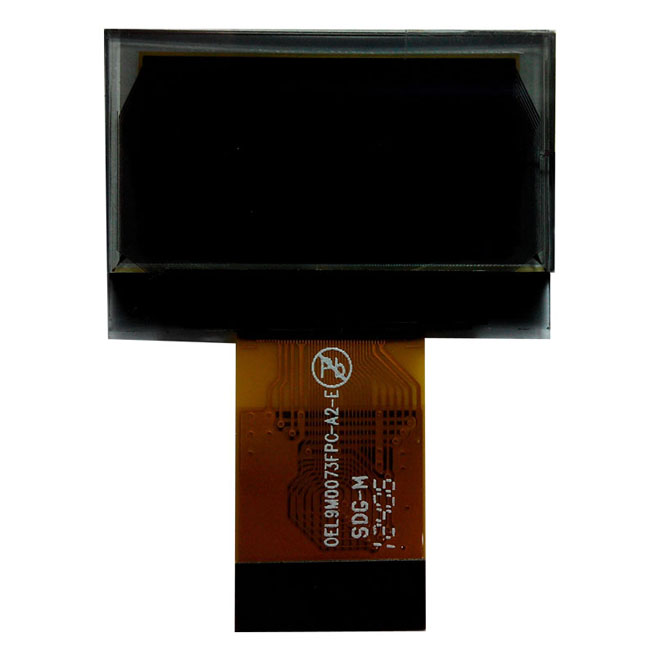

1.00″OEL9M0073-B-E
| Item | Specification |
| Resolution | 128(H) x 64(V) Lines |
| Display Format | 8,192 Pixels |
| Active Area | 23.02(W) x 11.82(H) mm |
| Outline Dimension (Panel) | 30.00(W) x 20.16(H) mm |
| Pixel Pitch | 0.180(W) x 0.185(H) mm |
| Pixel Size | 0.155W) x 0.160(H) mm |
| Encapsulation type | Glass Can |
| Display color | W/R/B/G/Y |
| IC package type | COG |
| Thickness | 1.45 mm MAX |
| Weight | < 1.8 g |
| Duty | 1/64 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
